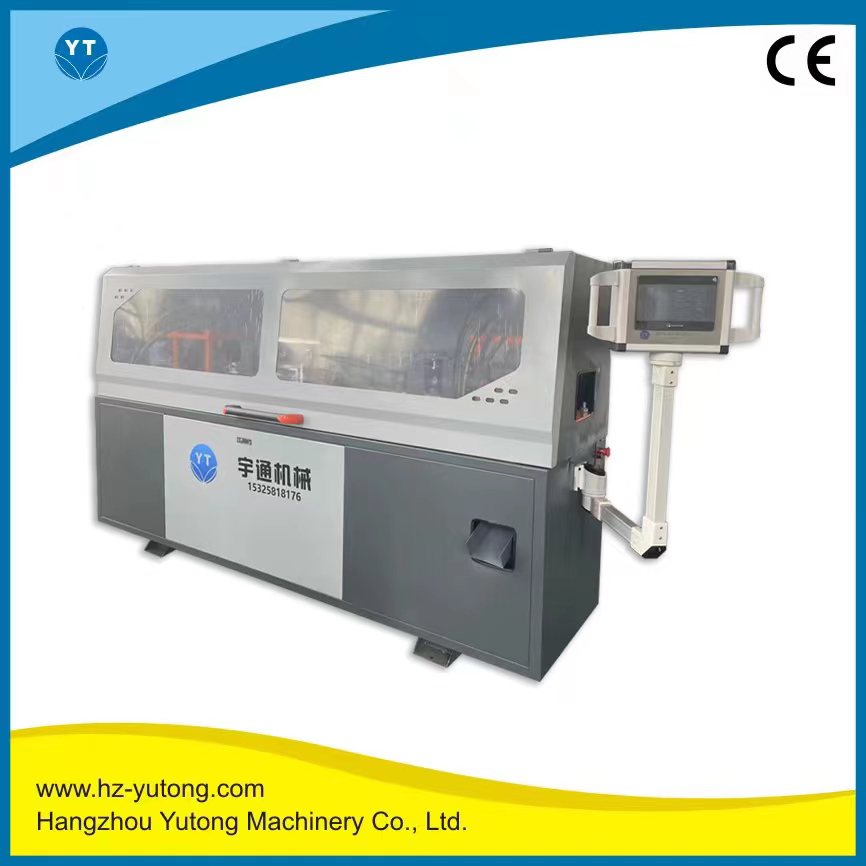

Collapsible Plywood Box Machine

Collapsible Plywood Box Machine
Collapsible Plywood Box Machine
Product Code : YT-P2
Brand Name : Yutong
Product Description

Collapsible Plywood Box Machine

Due to ethical business policies, we have successfully been engaged in manufacturing, exporting and supplying Collapsible Plywood Box Machine. The machine is extensively used to make plywood boxes. The provided machine is manufactured at our in-house production unit by utilizing high grade components with the aid of innovative techniques. Further, we are offering this Collapsible Plywood Box Machine in several technical specifications at cost effective prices.


Features:

  • Noise free operation
  • Excellent performance
  • Highly efficient
  • Equipped with PLC system

Our Other Models



High Quality Collapsible Plywood Box Making Machine High Speed Collapsible Plywood Box Making Machine



What makes us better than others



Professional

A.more than 15 years experience


B.keeping improving quality

Low price

A.low labor cost


B.Convenient transportation

Easy operation

A.Equipped with PLC


B.Steady performance

Customer requirement

A.Customer's design, color & logo are accepted

15 month warranty

A.Keep trouble far away from you



China supplier nailess case steel stripe forming machine

This Roll Forming Machine consist of sheet feeding deviceroll forming main machine, hydraulic system, PLC controller.

Working Flow

sheet feeding--roll forming--automatic cutting--run out table

Main Parameter



Item

Parameter

Note

Suitable Material

Type

Pre-paint Steel Aluminum


Width

40mm-42mm


Thickness

0.70mm, 0.80mm


Product Specs

Length

Any length

Adjustable

Machine Material

Active shaft

No. 45 steel tempered


Roller

No. 45 steel chrome plated

Cutting Blade

Cr12 quenched

Power Requirement

Type

380V/3PH/50HZ


Total

7.5kw


Hydraulic

4kw

Speed

Forming speed

15-18m/min

Adjustable

Speed

Product speed

5-10m/min

Adjustable

Transmission style

Chain, sprocket


Main machine structure

Wall Panel


Type of Cutting

length-set cutting

Hydraulic cutter

Control System

Mitsubishi PLC& transducer


Product support

Run out table



Detailed Picture



  • Nailless / Foldable / Collapsible / No-nail Plywood box machine
  • Rollers
  • moulds
  • safty shield
  • Steel Strip / Belt / Band
  •  buttons
  • Nailless / Foldable / Collapsible / No-nail Plywood box
